AN6262N Datasheet - Panasonic Semiconductor

AN6262N Pause Detection Circuits

Pin No. 1 2 3 4 5 6 7 8 9 Pin Name Signal Input Negative Feedback Pause Detection ON/OFF Input VCC GND Output Mode * Mode * Reference Oscillation ICs for Cassette, Cassette Deck * Pin 7 L H L H Pin 8 L L H H Mode OFF FF/REW PLAY OFF s Absolute Maximum Ratings (Ta=25˚C) Parameter S.
ICs for Cassette, Cassette Deck AN6262N, AN6263N Pause Detection Circuits of Radio Cassette, Cassette Deck s Overview The AN6262N and the AN6263N are the pause detection integrated circuits which select the program on the cassette tape. In the ordinal method, tape speed is different depending on the PLAY and FF/REW, and also nonsignal time between the programs is different. Therefore, two time constant circuit has been applied in order to detect each time. The AN6262N and the AN6263N are proud .

AN6262N Features

* Built-in protection circuit to prevent mis-operation when power switch is turned ON. Time-constant circuit for detection of no-signal period in PLAY and FF/REW.

* No-signal period and output pulse width can be selected by external capacitor.

* Detection level of input signa

AN6262N_PanasonicSemiconductor.pdf

Preview of AN6262N PDF

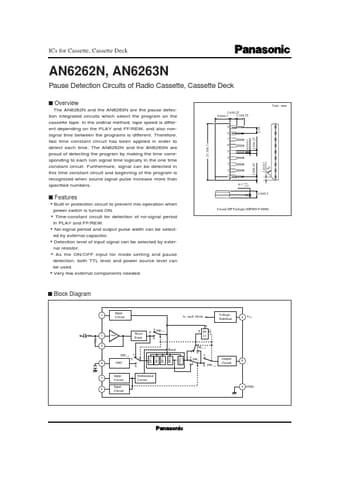

AN6262N Datasheet Preview Page 2 AN6262N Datasheet Preview Page 3

Datasheet Details

Part number:

AN6262N

Manufacturer:

Panasonic Semiconductor

File Size:

58.96 KB

Description:

Pause detection circuits.
