AN6291S

Dual dbx II Noise Reduction System ICs

AN6291S Features

* Wide dynamic range : 110dB

* Low operating voltage : VCC (min.) =1.8V

* Fewer external components

* Adjustment : only one

* Low power consumption

* Wide operating supply voltage range : VCC (opr) =1.8V to 14V 1.0±0.25 3.3±0.25 3 ~15˚ 10.16±0.25 2

AN6291S General Description

Pin No. 1 2 3 4 5 6 7 8 9 10 11 GND RMS IN-A TIMING-A CCA IN-A CAP-1-A CAP-2-A VOUT-A ON-OFF-A N.I. DECODE Pin Name Adjustment of timing current Pin No. 12 13 14 15 16 17 18 19 20 21 22 ENCODE I TIME ON-OFF-B VOUT-B CAP-2-B CAP-1-B CCA IN-B TIMING-B RMS IN-B NC VCC Pin Name ICs for Cassette, Casse.

AN6291S Datasheet (86.34 KB)

Preview of AN6291S PDF

Datasheet Details

Part number:

AN6291S

Manufacturer:

Panasonic Semiconductor

File Size:

86.34 KB

Description:

Dual dbx ii noise reduction system ics.

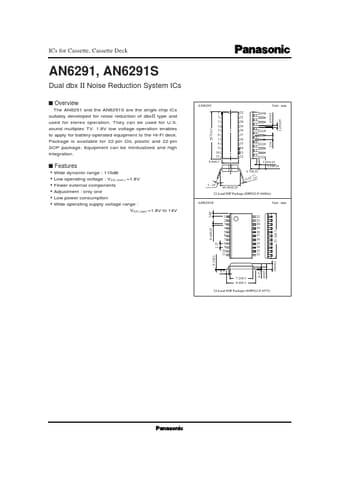

ICs for Cassette, Cassette Deck AN6291, AN6291S Dual dbx II Noise Reduction System ICs s Overview The AN6291 and the AN6291S are the single chip ICs .
