AN629 - Digitally Adjustable Voltage References

Product Overview

Maxim Integrated Products

Part number	AN629
Manufacturer	Maxim Integrated Products
File Size	58.86 KB
Description	Digitally Adjustable Voltage References
Datasheet	AN629 Datasheet

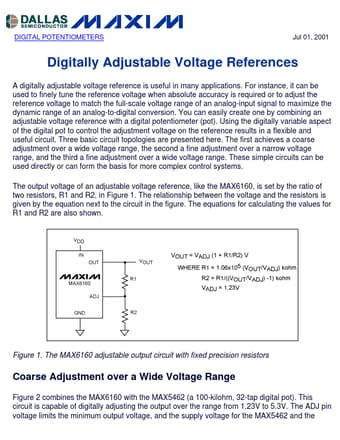

Additional preview pages of the AN629 datasheet.

Output Voltage 2.048V 2.500V 4.096V MAX5462 32T, 100 Kilohms 5% 7% 11% MAX5401 256T, 100 Kilohms 0.6% 0.8% 1.3% MAX5160 32T, 50 Kilohms, Two Resistors 0.5% 0.5% 0.5% MAX5415 256T, 100 Kilohms, Dual 0.06% 0.03% 0.08% 5.000V 16% 1.6% 0.5% 0.2% The initial accuracy, adjustment range, and long-term drift requirements for the system must be considered when choosing a circuit topology. The low wiper resistance, the low end-to-end resistor tempco, and the very low ratiometric tempco specification.
