AN642 Analog-to-Digital Converter Captures 1Gsps

A/D and D/A CONVERSION/SAMPLING CIRCUITS HIGH-SPEED SIGNAL PROCESSING Application Note 642: Jan 22, 2001 Analog-to-Digital Converter Captures 1Gsps One of the industry's first ultra high-speed, 8-bit data converters with highest AC performance and a GHz input bandwidth, the MAX104/6/8 family of data converters offers both sampling speed and signal bandwidth for applications where these parameters are of the utmost importance. At their introduction in 1999, this family of high-speed analog-to-d.

AN642 Features

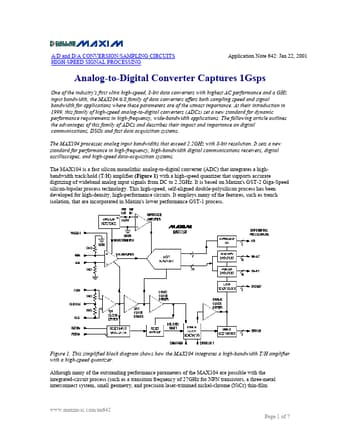

* such as trench isolation, that are incorporated in Maxim's lower performance GST-1 process. Figure 1. This simplified block diagram shows how the MAX104 integrates a high-bandwidth T/H amplifier with a high-speed quantizer. Although many of the outstanding performance parameters of the MAX104 are
