AN6426NK

Hands-free Speech Network IC

AN6426NK Features

* Incorporates all the functions required of a hands-free telephone.

* Incorporates all the functions required of a handset.

* Complies with AC and DC impedance requirements.

* Provides a wide dynamic range.

* A noise detecting circuit prevents inadvertent tra

AN6426NK General Description

Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 Symbol GND AGC SAO SAI Vr2 VPO RO1 RO2 RBO RPO RPI MAI1 MAO1 TL1 TLO ND1 ND2 TAI TAO ATC TAC Ground Loudspeaker amp. time constant Loudspeaker amp. output Loudspeaker amp. input Reference voltage (2) Loudspeaker amp. power supply Receive.

AN6426NK Datasheet (127.85 KB)

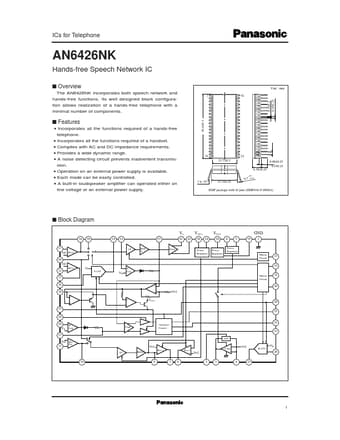

Preview of AN6426NK PDF

Datasheet Details

Part number:

AN6426NK

Manufacturer:

Panasonic Semiconductor

File Size:

127.85 KB

Description:

Hands-free speech network ic.
ICs for Telephone AN6426NK Hands-free Speech Network IC s Overview The AN6426NK incorporates both speech network and hands-free functions. Its well d.
