AN64 CMOS Gate Array

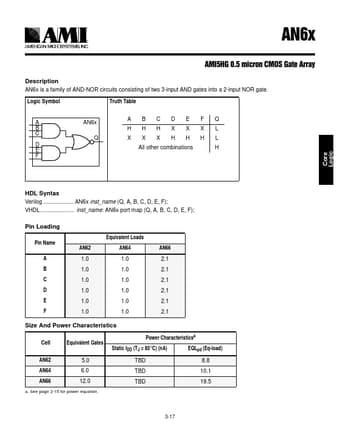

AN6x is a family of AND-NOR circuits consisting of two 3-input AND gates into a 2-input NOR gate. Logic Symbol Truth Table A AN6x A BCDE FQ B HHHXXX L C Q XXXHHHL D E All other combinations H F Core Logic HDL Syntax Verilog AN6x inst_name (Q, A, B, C, D, E, F); VHDL inst_name: AN6x por.

AN62-AMI.pdf

AN64 Datasheet Preview — This datasheet PDF includes multiple part numbers: AN64, AN62. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AN64, AN62

Manufacturer:

AMI

File Size:

24.90 KB

Description:

Cmos gate array.

Note:

This datasheet PDF includes multiple part numbers: AN64, AN62.
Please refer to the document for exact specifications by model.
