AN6914S

Dual Comparators

AN6914S Features

* Wide range of operating voltages Single supply:2 to 36V Dual supply:±1 to ± 18V

* Low circuit current:0.6mA typ.

* Wide range of common-mode input voltages :0V to VCC

* 1.5V (single supply)

* Open collector output 3

* 15˚ 7.62±0.25 0.15

* 0.05

AN6914S General Description

Pin No. 1 2 3 4 5 6 7 8 Pin name Ch.1 output Ch.1 inverting input Ch.1 non inverting input GND Ch.2 non inverting input Ch.2 inverting input Ch.2 output VCC s Absolute Maximum Ratings (Ta=25˚C) Parameter Supply voltage Voltage Common-mode input voltage Differential input voltage Output applied vol.

AN6914S Datasheet (29.89 KB)

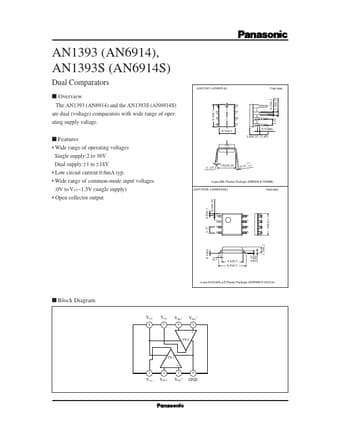

Preview of AN6914S PDF

Datasheet Details

Part number:

AN6914S

Manufacturer:

Panasonic Semiconductor

File Size:

29.89 KB

Description:

Dual comparators.
AN1393 (AN6914), AN1393S (AN6914S) Dual Comparators AN1393 (AN6914) Unit:mm 0.5±0.1 1.2±0.25 0.51min. 3.8±0.25 (3.45) +0.1 s Overview The AN1393 (AN6.
