AN7223 - AM Tuner/ FM/AM IF Amplifier

Product Overview

Panasonic Semiconductor

Part number	AN7223
Manufacturer	Panasonic Semiconductor
File Size	43.38 KB
Description	AM Tuner/ FM/AM IF Amplifier
Datasheet	AN7223 Datasheet

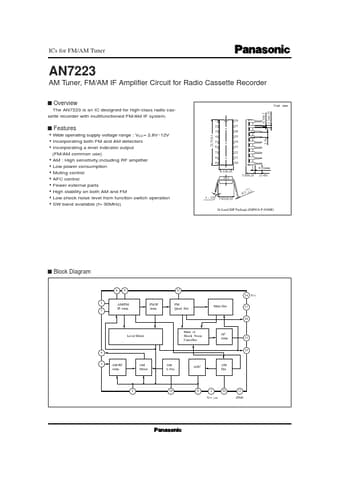

Additional preview pages of the AN7223 datasheet.

Pin No.

Wide operating supply voltage range : VCC= 2.8V~12V.
Incorporating both FM and AM detectors.
Incorporating a level indicator output (FM/AM common use) 2 3 21.7±0.3 4 5 6 7 8 9 15.
AM : High sensitivity,including RF amplifier.
Low power consumption.
Muting control.
AFC control.
Fewer external parts.
High stability on both AM and FM.
Low shock noise level from function switch operation.
SW band a.
