AN8002 3-pin/ positive output/ low dropout voltage regulator

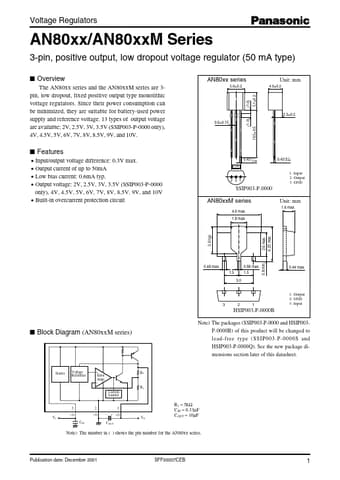

Voltage Regulators AN80xx/AN80xxM Series 3-pin, positive output, low dropout voltage regulator (50 mA type) I Overview The AN80xx series and the AN80xxM series are 3pin, low dropout, fixed positive output type monolithic voltage regulators. Since their power consumption can be minimized, they are suitable for battery-used power supply and reference voltage. 13 types of output voltage are available; 2V, 2.5V, 3V, 3.5V (SSIP003-P-0000 only), 4V, 4.5V, 5V, 6V, 7V, 8V, 8.5V, 9V, and 10V. AN80xx ser.

AN8002 Features

* Input/output voltage difference: 0.3V max.

* Output current of up to 50mA

* Low bias current: 0.6mA typ.

* Output voltage: 2V, 2.5V, 3V, 3.5V (SSIP003-P-0000 only), 4V, 4.5V, 5V, 6V, 7V, 8V, 8.5V, 9V, and 10V

* Built-in overcurrent protection circuit 0.43+0.
