AN8003M 3-pin Positive Output Low Dropout Voltage Regulator

AN8000/AN8000M Series 3-pin Positive Output Low Dropout Voltage Regulator (50mA Type) s Overview The AN8000 series is 3-pin low-dropout fixed positive output monolithic voltage regulators. Since thier power consumption can be minimized, they are suitable for battery stabilizing power supply and reference voltage. Thirteen types of output voltage are available ; 2V, 2.5V, 3V, 3.5V (TO-92 only) , 4V, 4.5V, 5V, 6V, 7V, 8V, 8.5V, 9V, and 10V. 2.54 AN8000 Series Unit:mm 4.0±0.2 5.1±0.2 0.45

AN8003M Features

* 2 3 1

* Input/output voltage difference : 0.3V (max.)

* Output current of up to 50mA

* Low bias current ; 0.6mA (typ.)

* Output voltage ; 2V, 2.5V, 3V, 3.5V (TO-92 only) , 4V, 4.5V, 5V, 6V, 7V, 8V, 8.5V, 9V, and 10V.

* Over-voltage protective circuit built-in

AN8003M Datasheet (56.23 KB)

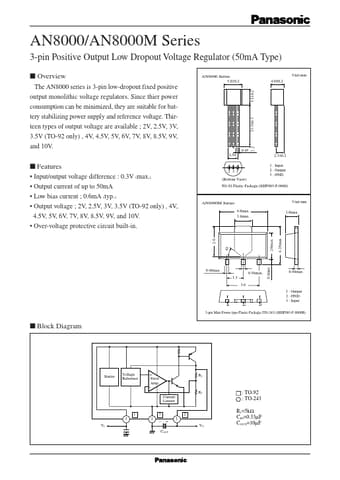

AN8003M Datasheet Preview — Preview of AN8003M PDF

Datasheet Details

Part number:

AN8003M

Manufacturer:

Panasonic Semiconductor

File Size:

56.23 KB

Description:

3-pin positive output low dropout voltage regulator.
