AN8004M, 3-pin Positive Output Low Dropout Voltage Regulator 50mA Type

AN8000/AN8000M Series 3-pin Positive Output Low Dropout Voltage Regulator (50mA Type) s Overview The AN8000 series is 3-pin low-dropout fixed positive.

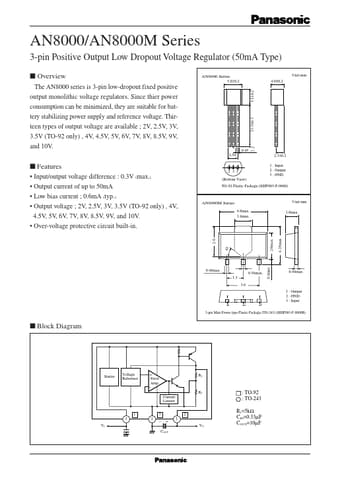

datasheet Preview Page 1 from Datasheet4u.com

AN8004M_PanasonicSemiconductor.pdf

AN8004M Datasheet Preview — Preview of AN8004M PDF

Datasheet Details

Part number:

AN8004M

Manufacturer:

Panasonic Semiconductor

File Size:

56.23 KB

Description:

3-pin Positive Output Low Dropout Voltage Regulator 50mA Type

Features

* 2 3 1
* Input/output voltage difference : 0.3V (max. )
* Output current of up to 50mA
* Low bias current ; 0.6mA (typ. )
* Output voltage ; 2V, 2.5V, 3V, 3.5V (TO-92 only) , 4V, 4.5V, 5V, 6V, 7V, 8V, 8.5V, 9V, and 10V.
* Over-voltage protective circuit built-in
