AN8025

3-pin Positive Output Low Dropout Voltage Regulator

AN8025 Features

* 2 3 1

* Input/output voltage difference : 0.3V (max.)

* Output current of up to 50mA

* Low bias current ; 0.6mA (typ.)

* Output voltage ; 2V, 2.5V, 3V, 3.5V (TO-92 only) , 4V, 4.5V, 5V, 6V, 7V, 8V, 8.5V, 9V, and 10V.

* Over-voltage protective circuit built-in

AN8025 Datasheet (56.23 KB)

Preview of AN8025 PDF

Datasheet Details

Part number:

AN8025

Manufacturer:

Panasonic Semiconductor

File Size:

56.23 KB

Description:

3-pin positive output low dropout voltage regulator.

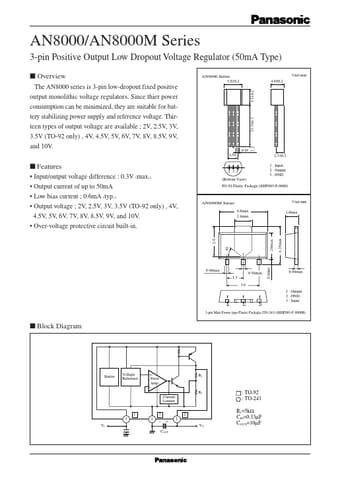

AN8000/AN8000M Series 3-pin Positive Output Low Dropout Voltage Regulator (50mA Type) s Overview The AN8000 series is 3-pin low-dropout fixed positive.
