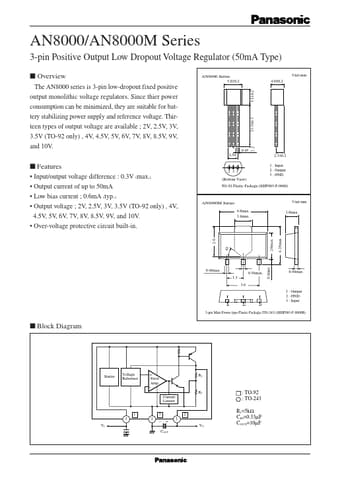

AN8025M - 3-pin Positive Output Low Dropout Voltage Regulator

Panasonic Semiconductor

Datasheet Details

Part number	AN8025M
Manufacturer	Panasonic Semiconductor
File Size	56.23 KB
Description	3-pin Positive Output Low Dropout Voltage Regulator
Datasheet	AN8025M_PanasonicSemiconductor.pdf

2 3 1.
Input/output voltage difference : 0.3V (max. ).
Output current of up to 50mA.
Low bias current ; 0.6mA (typ. ).
Output voltage ; 2V, 2.5V, 3V, 3.5V (TO-92 only) , 4V, 4.5V, 5V, 6V, 7V, 8V, 8.5V, 9V, and 10V.
Over-voltage protective circuit built-in. (Bottom View) TO-92 Plastic Package (SSIP003-P-0000) AN8000M Series 4.6max. 1.8max. Unit:mm 1.6max. 0.48max. 1.5 3.0 0.8min. 4.25max. 0.44max. 1 : Output 2 : GND 3 : Input 0.58max. 1 2 3.
