AN8028

Self-excited RCC pseudo-resonance type AC-DC switching power supply controller

AN8028 Features

* 0.3 +0.1

* 0.05

* Operating supply voltage range: 3.0±0.3 Stop voltage (8.6 V typical) to 34 V SIP009-P-0000C

* Output block employs the totem pole system.

* Power MOSFET can be directly driven. (output peak current: ±1 A maximum)

* Small pre-start operating

AN8028 General Description

Pin No. 1 2 3 4 5 6 7 8 9 Symbol TDL TOFF TON CLM GND VOUT VCC TIM/OVP FB Transformer reset detection Pin for connecting C and R to set minimum off-period Pin for connecting C to set minimum on-period Input pin for overcurrent protection detection Grounding pin Output pin Power supply voltage pin P.

AN8028 Datasheet (133.25 KB)

Preview of AN8028 PDF

Datasheet Details

Part number:

AN8028

Manufacturer:

Panasonic Semiconductor

File Size:

133.25 KB

Description:

Self-excited rcc pseudo-resonance type ac-dc switching power supply controller.
Voltage Regulators AN8028 Self-excited RCC pseudo-resonance type AC-DC switching power supply control IC s Overview The AN8028 is an IC developed for.

📁 Related Datasheet

AN8021L - AC-DC switching power supply controller (Panasonic Semiconductor)
Voltage Regulators AN8021L, AN8021SB AC-DC switching power supply control IC s Overview The AN8021L and AN8021SB are ICs which are suitable for contr.

AN8021NS - External excitation flyback AC-DC switching power supply controller (Panasonic Semiconductor)
Voltage Regulators AN8021NS External excitation flyback AC-DC switching power supply control IC s Overview The AN8021S is a switching power supply co.

AN8021SB - AC-DC switching power supply controller (Panasonic Semiconductor)
Voltage Regulators AN8021L, AN8021SB AC-DC switching power supply control IC s Overview The AN8021L and AN8021SB are ICs which are suitable for contr.

AN8022L - AC-DC switching power supply controller (Panasonic Semiconductor)
Voltage Regulators AN8022L, AN8022SB AC-DC switching power supply control IC s Overview The AN8022L and AN8022SB are ICs which are suitable for contr.

AN8022SB - AC-DC switching power supply controller (Panasonic Semiconductor)
Voltage Regulators AN8022L, AN8022SB AC-DC switching power supply control IC s Overview The AN8022L and AN8022SB are ICs which are suitable for contr.

AN8025 - 3-pin Positive Output Low Dropout Voltage Regulator (Panasonic Semiconductor)
AN8000/AN8000M Series 3-pin Positive Output Low Dropout Voltage Regulator (50mA Type) s Overview The AN8000 series is 3-pin low-dropout fixed positive.

AN8025M - 3-pin Positive Output Low Dropout Voltage Regulator (Panasonic Semiconductor)
AN8000/AN8000M Series 3-pin Positive Output Low Dropout Voltage Regulator (50mA Type) s Overview The AN8000 series is 3-pin low-dropout fixed positive.

AN8026 - Self-excited RCC pseudo-resonance type AC-DC switching power supply controller (Panasonic Semiconductor)
Voltage Regulators AN8026 Self-excited RCC pseudo-resonance type AC-DC switching power supply control IC s Overview The AN8026 is an IC developed for.

TAGS

AN8028 Self-excited RCC pseudo-resonance type AC-DC switching power supply controller Panasonic Semiconductor

Image Gallery

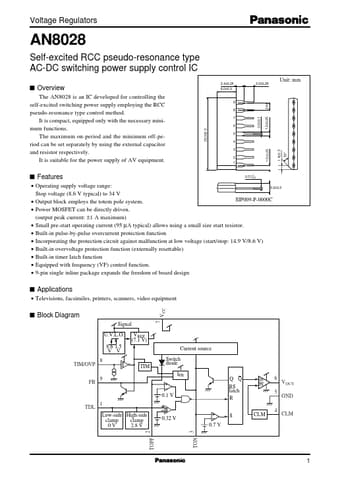

AN8028 Datasheet Preview Page 2 AN8028 Datasheet Preview Page 3
