AN8083S Datasheet - Panasonic Semiconductor

AN8083S Low Voltage Operation

Pin No. 1 2 Symbol IN FB * Input pin for error amplifier * Threshold voltage ; 0.7V * Output pin for error amplifier Pin Description AN8083S 3 SPRO * Short-circuit protection input pin. If output of error amplifier does not become “L” when t=CVth/ISPRO output of I.

AN8083S Features

* Operatable with low voltage input (PVCC>1.1V)

* Decreased voltage detection circuit built-in

* Short-circuit protection feature built-in

* Provided with reset output

* Synchronizable with outside clock

* Low consumption current in stand-by mode

AN8083S_PanasonicSemiconductor.pdf

Preview of AN8083S PDF

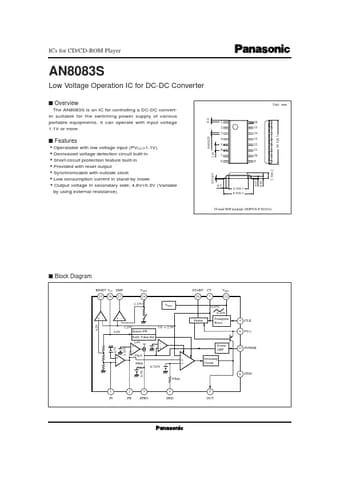

AN8083S Datasheet Preview Page 2 AN8083S Datasheet Preview Page 3

Datasheet Details

Part number:

AN8083S

Manufacturer:

Panasonic Semiconductor

File Size:

62.77 KB

Description:

Low voltage operation.
