AN8085M

3-pin/ positive output/ low dropout voltage regulator

Panasonic Semiconductor

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	Panasonic Electronic Components	AN8085M	IC REG LINEAR 8.5V 50MA 3-HSIP	DigiKey	0	0	$0	🛒 Buy Now

Download Datasheet (159.18 KB)

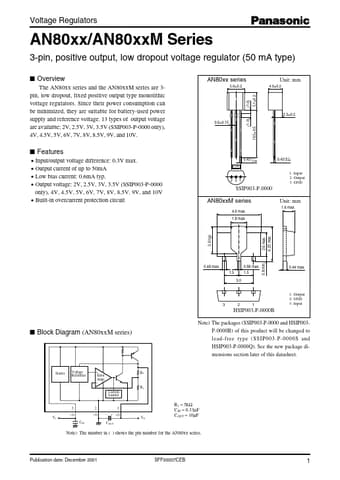

AN8085M Datasheet Preview — Preview of AN8085M Datasheet

Datasheet Details

Part number:

AN8085M

Manufacturer:

Panasonic Semiconductor

File Size:

159.18 KB

Description:

3-pin/ positive output/ low dropout voltage regulator.
Voltage Regulators AN80xx/AN80xxM Series 3-pin, positive output, low dropout voltage regulator (50 .
mA type) I Overview The AN80xx series and the AN80xxM series are 3pin, low dropout, fixed positive o.

✔ AN8085M Features

Input/output voltage difference: 0.3V max.
Output current of up to 50mA
Low bias current: 0.6mA typ.
Output voltage: 2V, 2.5V, 3V, 3.5V (SSIP003-P-0000 only), 4V,
