AN8538SH Datasheet, Pll, Panasonic Semiconductor

AN8538SH Features

  • Pll 0.625±0.10 5 6 0.5±0.2 4.3±0.30 6.3±0.30 SSOP010-P-0225 s Applications
  • IF local oscillation for cellular phone terminal (CDMA for North America) s Block Diagram SELECT

PDF File Details

Part number:

AN8538SH

Manufacturer:

Panasonic Semiconductor

File Size:

50.40kb

Download:

📄 Datasheet

Description:

Single pll. Pin No. 1 2 3 4 5 6 7 8 9 10 Symbol CPSUB CP GND IFIN PS SW VCC REF SELECT LD Description Sub charge pump output Charge pump output

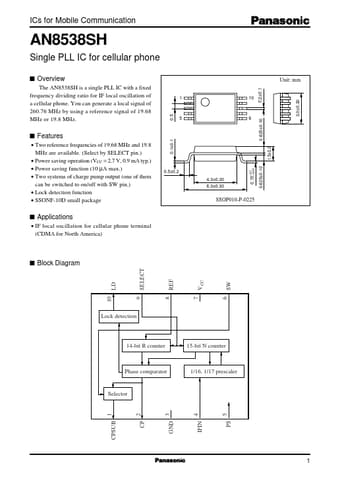

Datasheet Preview: AN8538SH 📥 Download PDF (50.40kb)
Page 2 of AN8538SH Page 3 of AN8538SH

AN8538SH Application

  • Applications
  • IF local oscillation for cellular phone terminal (CDMA for North America) s Block Diagram SELECT REF VCC LD SW 10 9 8 7
