AN8735NSB - 2-channel linear driver

AN8735NSB Description

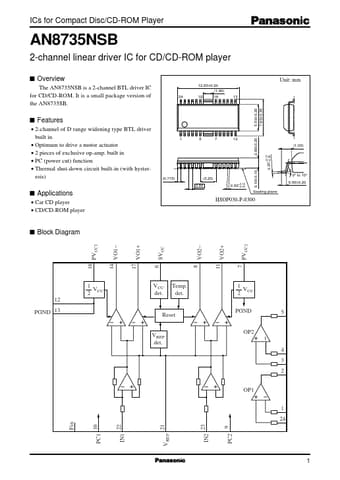

ICs for Compact Disc/CD-ROM Player AN8735NSB 2-channel linear driver IC for CD/CD-ROM player s Overview The AN8735NSB is a 2-channel BTL driver IC fo.
Pin No.

AN8735NSB Features

* 2-channel of D range widening type BTL driver built in
* Optimum to drive a motor actuator
* 2 pieces of exclusive op-amp. built in
* PC (power cut) function
* Thermal shut-down circuit built-in (with hysteresis) 1 6 7 12 2.00±0.20 5.50±0.20 7.60±0.30 (1.

AN8735NSB Applications

* Car CD player
* CD/CD-ROM player Seating plane HSOP030-P-0300 s Block Diagram PVCC1 PVCC2 VO1
* VO1+ VO2
* 8 VO2+ 11 SVCC 6 18 14 17 1 V 2 CC 12 PGND 13 VCC det. Temp. det. 1 V 2 CC PGND 5 Reset 7 VREF det. OP2 4 3 2 OP1 1 Fin 24 16 22 21 23 VREF PC1 I
