AN8737SB - 3-channel driver

AN8737SB Description

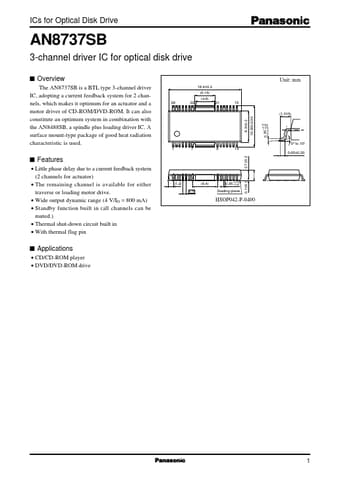

ICs for Optical Disk Drive AN8737SB 3-channel driver IC for optical disk drive s Overview The AN8737SB is a BTL type 3-channel driver IC, adopting a .
Pin No.

AN8737SB Features

* Little phase delay due to a current feedback system (2 channels for actuator)
* The remaining channel is available for either traverse or loading motor drive.
* Wide output dynamic range (4 V/IO = 800 mA)
* Standby function built in (all channels can be muted. )

AN8737SB Applications

* CD/CD-ROM player
* DVD/DVD-ROM drive 0.1±0.1 1 AN8737SB s Block Diagram PVCC1 ICs for Optical Disk Drive 20 TFLG 16 VO3
* 12 15 28 14 19 1 2 VCC PGND1 13 VCC det. Temp. det. 1 2 VCC 17 PGND2 Reset 18 VREF reset PC2 VREF 26 N. C. 10 VRB1 IN1 OUT1 OUT2 IN2
