C1573 - 2SC1573

Datasheet Summary

Features

  • q High collector to emitter voltage VCEO. q High transition frequency fT. s Absolute Maximum Ratings (Ta=25˚C) Parameter Symbol Ratings Unit 2SC1573 250 Collector to 2SC1573A VCBO 300 V base voltage 2SC1573B 400 2SC1573 200 Collector to 2SC1573A VCEO 300 V emitter voltage 2SC1573B 400 Emitter to base voltage VEBO 7 V Peak collector current ICP 100 mA Collector current IC 70 mA Collector power dissipation PC 1 W Junction temperature Tj 150 ˚C Storage temp.

📥 Download Datasheet

Datasheet preview – C1573

Datasheet Details

Part number C1573
Manufacturer Panasonic Semiconductor
File Size 46.37 KB
Description 2SC1573
Datasheet download datasheet C1573 Datasheet
Additional preview pages of the C1573 datasheet.

📁 Similar Datasheet

  • C1570 - 2SC1570 (Sanyo)
  • C1570 - Dual Transistor (Mitsubishi)
  • C1571 - 2SC1571 (Sanyo)
  • C1571L - 2SC1571L (Sanyo)
  • C157C - Industrial Liner ICs (NEC)
  • C1501 - 2SC1501 (SavantIC)
  • C1506 - 2SC1506 (NEC)
  • C1507 - 2SC1507 (JMnic)
  • C1509 - Silicon NPN Transistor (Panasonic)
  • C150N50Z4 - Surface Mount Termination (Anaren Microwave)
Other Datasheets by Panasonic Semiconductor

Full PDF Text Transcription

Click to expand full text

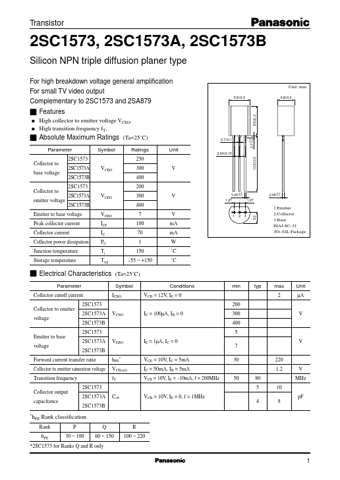

Transistor 2SC1573, 2SC1573A, 2SC1573B Silicon NPN triple diffusion planer type For high breakdown voltage general amplification For small TV video output Complementary to 2SC1573 and 2SA879 s Features q High collector to emitter voltage VCEO. q High transition frequency fT. s Absolute Maximum Ratings (Ta=25˚C) Parameter Symbol Ratings Unit 2SC1573 250 Collector to 2SC1573A VCBO 300 V base voltage 2SC1573B 400 2SC1573 200 Collector to 2SC1573A VCEO 300 V emitter voltage 2SC1573B 400 Emitter to base voltage VEBO 7 V Peak collector current ICP 100 mA Collector current IC 70 mA Collector power dissipation PC 1 W Junction temperature Tj 150 ˚C Storage temperature Tstg –55 ~ +150 ˚C s Electrical Characteristics (Ta=25˚C) 5.9±0.2 Unit: mm 4.9±0.
