Transmissive Photosensors (Photo Interrupters) CNA1003H www.DataSheet4U.com Photo Interrupter For contactless SW, object detection Outline CNA1003H is a transmittive photosensor in which a high efficiency GaAs infrared light emitting diode is used as the light emitting element, and a high sensitivity phototransistor is used as the light detecting element. The two elements are arranged so as to face each other, and objects passing between them are detected. Mark for indicating LED side A 2.2±0.1.

CNA1003H Features

* Highly precise position detection : 0.3 mm Gap width : 5 mm With printed wiring board (PWB) positioning pins 2 (2-0.45) (10.0) 0.7 2.35±0.1 3 ,, ,, SEC. A-A' 6.0 C1.0 2-ø0.7±0.1 (2-0.45) (2.54) 2 3 5.2±0.1 1 6.6±0.1 4 1 Pin connection 4 Absolute Maximum Ratings (Ta = 25˚C) Parameter Input (

CNA1003H Datasheet (67.04 KB)

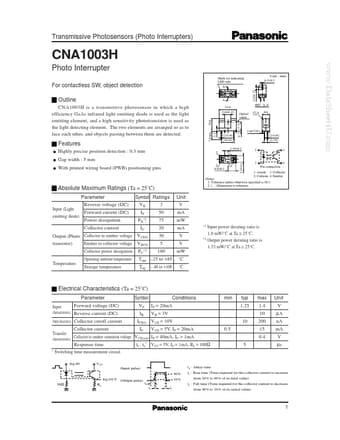

CNA1003H Datasheet Preview — Preview of CNA1003H PDF

Datasheet Details

Part number:

CNA1003H

Manufacturer:

Panasonic Semiconductor

File Size:

67.04 KB

Description:

Photo interrupter.
