CNA1009 - Photo Interrupters

Panasonic Semiconductor

Datasheet Details

Part number	CNA1009
Manufacturer	Panasonic ↗ Semiconductor
File Size	84.46 KB
Description	Photo Interrupters
Datasheet	CNA1009_PanasonicSemiconductor.pdf

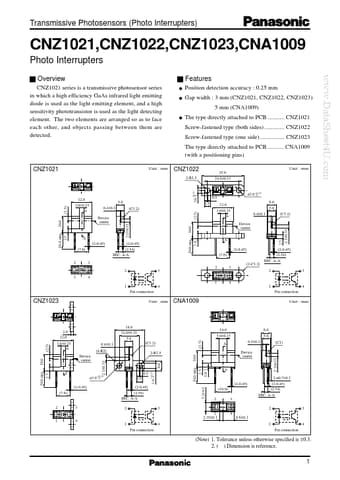

Position detection accuracy : 0.25 mm Gap width : 3 mm (CNZ1021, CNZ1022, CNZ1023) 5 mm (CNA1009) The type directly attached to PCB CNZ1021 Screw-fastened type (both sides) CNZ1022 Screw-fastened type (one side) CNZ1023 The type directly attached to PCB CNA1009 (with a positioning pins) CNZ1021 ∑ Unit : mm CNZ1022 2-R1.5 Unit : mm 25.0 19.0±0.15 ∑ 3.0 +0.15.
0 12.0 (2.5) 0.5 3.5 12.0 3.0±0.15 A ø3.0 +0.15.
0 6.0 5.0 0.4±0.1 Device center A' (C1.2) 10.0 2.1±0.15 Dev.
