* Ultraminiature : 4.2 × 4.2 mm (height : 5.2 mm) Fast response : tr, tf = 35 µs (typ.) Highly precise position detection : 0.15 mm Gap width : 1.2 mm Absolute Maximum Ratings (Ta = 25˚C) Parameter Symbol Ratings Unit Input (Light emitting diode) Output (Photo transistor) Temperature Reverse volt

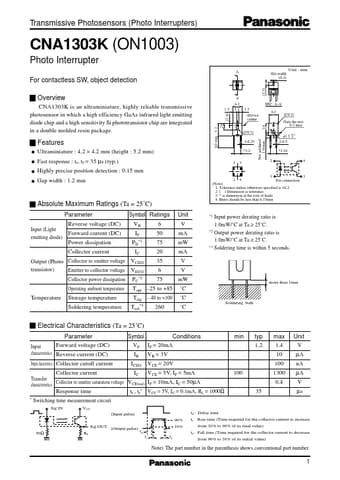

CNA1303K
Panasonic Semiconductor
65.66 KB
Photo interrupter.
Transmissive Photosensors (Photo Interrupters)
CNA1303K (ON1003)
Photo Interrupter
For contactless SW, object detection
A
Unit : mm Slit width
(0..
