CNB1001 - Reflective Photosensors

Name: CNB1001
SKU: CNB1001-101884

Panasonic Semiconductor

The CNB1001 by Panasonic Semiconductor is a Reflective Photosensors. Below is the official datasheet preview.

Datasheet Details

Part number	CNB1001
Manufacturer	Panasonic Semiconductor
File Size	48.95 KB
Description	Reflective Photosensors
Datasheet	CNB1001_PanasonicSemiconductor.pdf

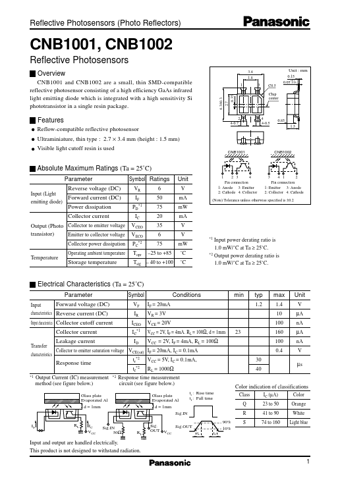

Additional preview pages of the CNB1001 datasheet.

Reflow-compatible reflective photosensor Ultraminiature, thin type : 2.7 × 3.4 mm (height : 1.5 mm) Visible light cutoff resin is used Absolute Maximum Ratings (Ta = 25˚C) Parameter Symbol Ratings Unit Reverse voltage (DC) VR 6 V Input (Light Forward current (DC) emitting diode) IF 50 mA Power dissipation PD.
1 75 mW Collector current Output (Photo Collector to emitter voltage transistor) Emitter to collector voltage Collector power dissipation Operating ambient temperature Tempe.
