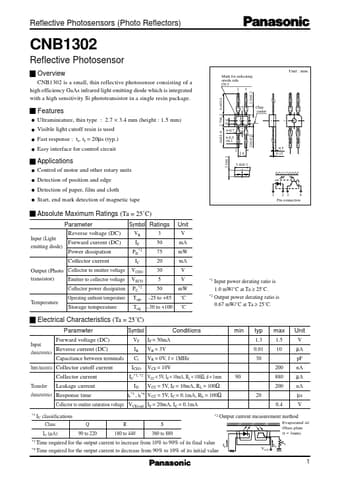

CNB1302 Datasheet, Photosensor, Panasonic Semiconductor

CNB1302 Features

• Photosensor Ultraminiature, thin type : 2.7 × 3.4 mm (height : 1.5 mm) Visible light cutoff resin is used Fast response : tr, tf = 20µs (typ.) Easy interface for control circuit Applications Contro

PDF File Details

Part number:

CNB1302

Manufacturer:

Panasonic Semiconductor

File Size:

47.34kb

Download:

📄 Datasheet

Description:

Reflective photosensor.

CNB1302 Application

• Applications Control of motor and other rotary units Detection of position and edge Detection of paper, film and cloth Start, end mark detection of
