MN1381, MN1380, (MN138x) CMOS LSIs for Voltage Detection

Microcomputer Peripheral LSIs MN1380 Series CMOS LSIs for Voltage Detection Overview The MN1380 series are elements that monitor the power supply vol.
Pin No.

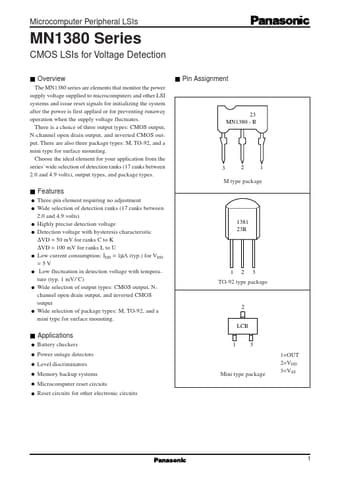

datasheet Preview Page 1 from Datasheet4u.com

MN1380_PanasonicSemiconductor.pdf

MN1381 Datasheet Preview — This datasheet PDF includes multiple part numbers: MN1381, MN1380. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MN1381, MN1380

Manufacturer:

Panasonic Semiconductor

File Size:

157.38 KB

Description:

(MN138x) CMOS LSIs for Voltage Detection

Note:

This datasheet PDF includes multiple part numbers: MN1381, MN1380.
Please refer to the document for exact specifications by model.

Features

* Three-pin element requiring no adjustment Wide selection of detection ranks (17 ranks between 2.0 and 4.9 volts) Highly precise detection voltage Detection voltage with hysteresis characteristic ∆VD = 50 mV for ranks C to K ∆VD = 100 mV for ranks L to U Low current consumption: IDD = 1µA (typ. ) for

Applications

* Battery checkers Power outage detectors Level discriminators Memory backup systems Microcomputer reset circuits Reset circuits for other electronic circuits Mini type package 1 3 1=OUT 2=VDD 3=VSS 1 MN1380 Series MN1380 Series Naming Conventions Microcomputer Peripheral LSIs The MN1380 series o
