MN6460A, A/D Converter for Digital Audio Equipment

( DataSheet : www.DataSheet4U.com ) For Audio Equipment MN6460A A/D Converter for Digital Audio Equipment Overview The MN6460A is a 16-bit CMOS anal.
Pin No.

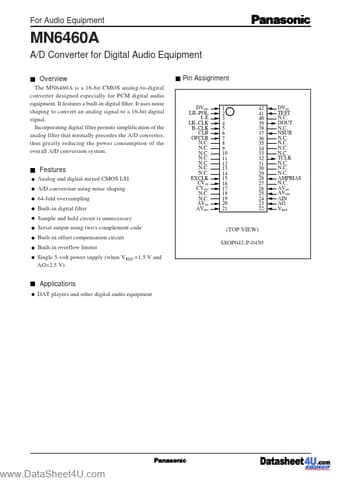

datasheet Preview Page 1 from Datasheet4u.com

MN6460A_PanasonicSemiconductor.pdf

MN6460A Datasheet Preview — Preview of MN6460A PDF

Datasheet Details

Part number:

MN6460A

Manufacturer:

Panasonic Semiconductor

File Size:

129.14 KB

Description:

A/D Converter for Digital Audio Equipment

Features

* a built-in digital filter. It uses noise shaping to convert an analog signal to a 16-bit digital signal. Incorporating digital filter permits simplification of the analog filter that normally precedes the A/D converter, thus greatly reducing the power consumption of the overall A/D conversion system

Applications

* DAT players and other digital audio equipment www. DataSheet4U. com MN6460A Block Diagram For Auido Equipment DSQ:1bit Delta Sigma Quantizer 1st DSQ (+) 24 × 1/2 1st DSQ (
* ) × 1/2 2nd DSQ
* 3rd DSQ + AIN Summing logic A/D converter EXCLK 15 Clock Generator FIR 1 Comb-filter
