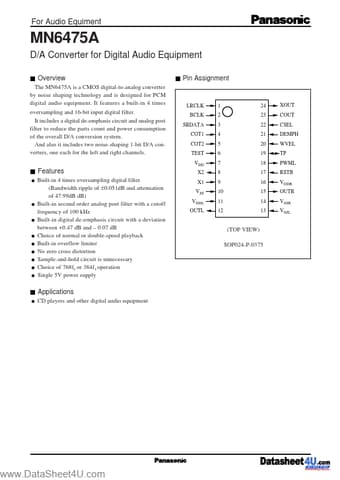

MN6475A - D/A Converter for Digital Audio Equipment

MN6475A Description

( DataSheet : www.DataSheet4U.com ) For Audio Equiment MN6475A D/A Converter for Digital Audio Equipment Overview The MN6475A is a CMOS digital-to-a.
Pin No.

MN6475A Features

* a built-in 4 times oversampling and 16-bit input digital filter. It includes a digital de-emphasis circuit and analog post filter to reduce the parts count and power consumption of the overall D/A conversion system. And also it includes two noise-shaping 1-bit D/A converters, one each for the left a

MN6475A Applications

* CD players and other digital audio equipment www. DataSheet4U. com MN6475A Block Diagram For Audio Equipment PWML 18 12 +
* 15
* OUTR OUTL + WVEL X1 X2 CSEL COUT XOUT RSTB 20 9 8 22 23 24 17 Timing gen. PWM Logic (L) PWM Logic (R) LR selector Noise shaping logic 4 time

📥 Download Datasheet

Preview of MN6475A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MN6475A
Manufacturer
Panasonic Semiconductor
File Size
114.50 KB
Datasheet
MN6475A_PanasonicSemiconductor.pdf
Description
D/A Converter for Digital Audio Equipment
