ON1004 Transmissive Photosensors

Transmissive Photosensors (Photo lnterrupters) CNA1302K (ON1004) Photo lnterrupter For contactless SW, object detection Overview CNA1302K is an ultraminiature, highly reliable transmissive photosensor in which a high efficiency GaAs infrared light emitting diode chip and a high sensitivity Si phototransistor chip are integrated in a double molded resin package. 4.0 min. A Unit: mm Slit width (0.3) A' 5.0 1.5 (1.0) 2.8 2.0 1.5 Device center 3.9 (1.5) SEC. A-A' 4.2 (C0.5) Gate the re.

ON1004 Features

* Ultraminiature: 4.2 mm × 5.0 mm (height: 5.2 mm)

* Fast response: tr , tf = 35 µs (typ.) www.DataSheet4U.com

* Highly precise position detection: 0.15 mm

* Gap width: 2.0 mm 5.2 (C0.3) 2.4 2-0.25

* 3.8 2-0.5

* 2.54

* Absolute Maximum Ratings Ta = 25°C

ON1004_PanasonicSemiconductor.pdf

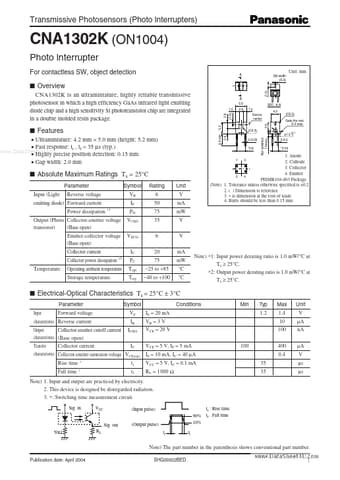

ON1004 Datasheet Preview — Preview of ON1004 PDF

Datasheet Details

Part number:

ON1004

Manufacturer:

Panasonic Semiconductor

File Size:

128.77 KB

Description:

Transmissive photosensors.
