Cmos gate array.

ON11, CMOS Gate Array

ON1x is a family of OR-NAND circuits consisting of two 2-input OR gates into a 2-input NAND gate.

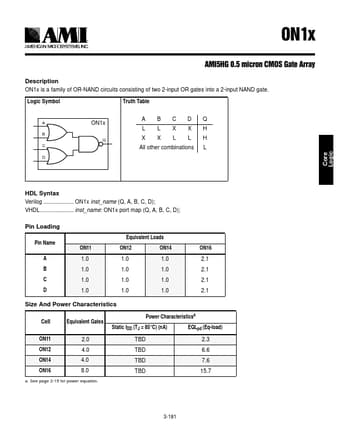

Logic Symbol Truth Table A ON1x A B CDQ L LXXH B Q XXL LH C All other combinations L D Core Logic HDL Syntax Verilog ON1x inst_name (Q, A, B, C, D); VHDL inst_name: ON1x port map (Q, A, B, C,
