ON1113 Transmissive Photosensors

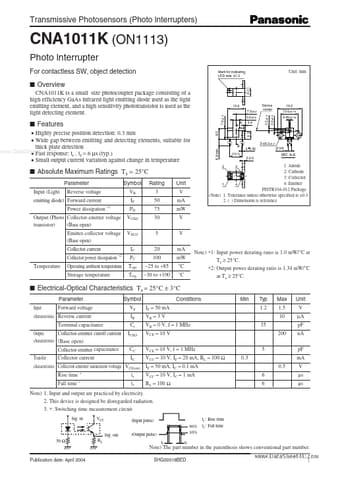

Transmissive Photosensors (Photo lnterrupters) CNA1011K (ON1113) Photo lnterrupter For contactless SW, object detection Overview CNA1011K is a small size photocoupler package consisting of a high efficiency GaAs infrared light emitting diode used as the light emitting element, and a high sensitivity phototransistor is used as the light detecting element. 13.6 7.0±0.2 7.0±0.3 5.0±0.2 A 0.4 6.2 Mark for indicating LED side φ1.5 Unit: mm 6.2 Device center 2.2±0.3 2.2±0.2 19.2 13.0±0.15 0.

ON1113 Features

* Highly precise position detection: 0.3 mm

* Wide gap between emitting and detecting elements, suitable for thick plate detection www.DataSheet4U.com

* Fast response: tr , tf = 6 µs (typ.)

* Small output current variation against change in temperature 8.5 8.8 min.
