ON1109

Photo Interrupter

ON1109 Features

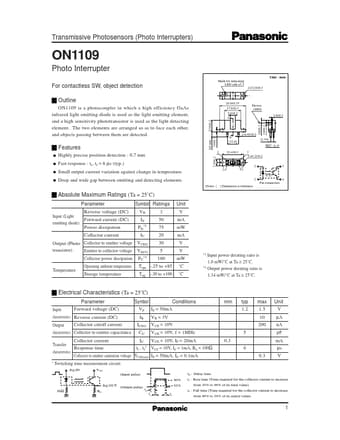

* Highly precise position detection : 0.7 mm Fast response : tr, tf = 6 µs (typ.) Small output current variation against change in temperature Deep and wide gap between emitting and detecting elements 7.0±0.2 3 2-ø3.2±0.2 2 3 1 4 (Note) ( ) Dimension is reference Absolute Maximum Ratings (Ta =

ON1109 Datasheet (45.64 KB)

Preview of ON1109 PDF

Datasheet Details

Part number:

ON1109

Manufacturer:

Panasonic Semiconductor

File Size:

45.64 KB

Description:

Photo interrupter.
Transmissive Photosensors (Photo Interrupters) ON1109 Photo Interrupter Unit : mm For contactless SW, object detection Outline ON1109 is a photocoup.
