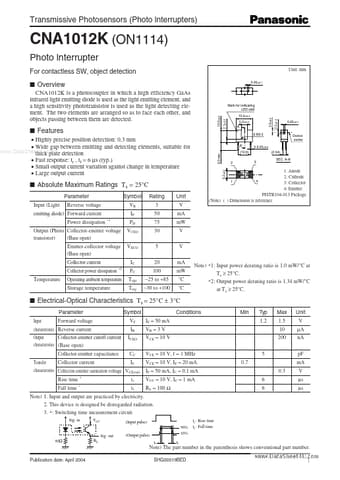

Transmissive Photosensors (Photo lnterrupters) CNA1012K (ON1114) Photo lnterrupter For contactless SW, object detection Overview CNA1012K is a photocoupler in which a high efficiency GaAs infrared light emitting diode is used as the light emitting element, and a high sensitivity phototransistor is used as the light detecting element.

The two elements are arranged so as to face each other, and objects passing between them are detected.

0.45±0.1 Unit: mm Mark for indicating LED side 10.0±

ON1114 Features

* Highly precise position detection: 0.3 mm

* Wide gap between emitting and detecting elements, suitable for www.DataSheet4U.com thick plate detection

* Fast response: tr , tf = 6 µs (typ.)

* Small output current variation against change in temperature

* Large
