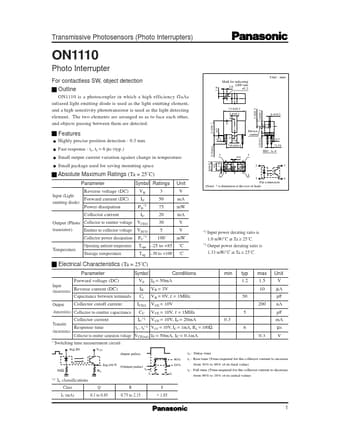

ON1110 Datasheet (Panasonic Semiconductor)

ON1110, Photo Interrupter

Transmissive Photosensors (Photo Interrupters) ON1110 Photo Interrupter For contactless SW, object detection Outline ON1110 is a photocoupler in which a high efficiency GaAs infrared light emitting diode is used as the light emitting element, and a high sensitivity phototransistor is used as the light detecting element.

The two elements are arranged so as to face each other, and objects passing between them are detected.

1.6 Unit : mm Mark for indicating LED side 2.0 ø1.2 3.0±0.3 2.0±0.2 13.

ON1110 Features

* Highly precise position detection : 0.3 mm Fast response : tr, tf = 6 µs (typ.) Small output current variation against change in temperature Small package used for saving mounting space Device center A' 3.0

* 10.0±0.4 3 2 4 1 0.5 1.8±0.2 8.0 min. 2 0.8 6.0±0.2 4.0 1.6 ,, ,, 0.7

* 2.54
