XP2211 - Silicon NPN epitaxial planer transistor

Product Overview

Panasonic Semiconductor

Part number	XP2211
Manufacturer	Panasonic Semiconductor
File Size	33.08 KB
Description	Silicon NPN epitaxial planer transistor
Datasheet	XP2211 Datasheet
Additional preview pages of the XP2211 datasheet.

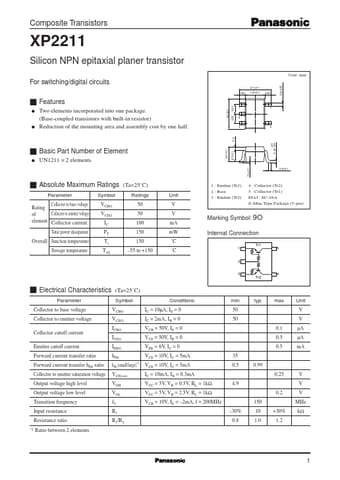

q q Two elements incorporated into one package. (Base-coupled transistors with built-in resistor) Reduction of the mounting area and assembly cost by one half. 2.0±0.1 1 2 3 5 0.65 4 0.9± 0.1 q UN1211 × 2 elements 0.7±0.1 s Basic Part Number of Element 0.2 s Absolute Maximum Ratings Parameter Collector to base voltage Rating Collector to emitter voltage of element Collector current Total power dissipation Overall Junction temperature Storage temperature Symbol VCBO VCEO IC PT Tj Tst.
