2SA0794A, 2SA0794 Silicon PNP Transistor

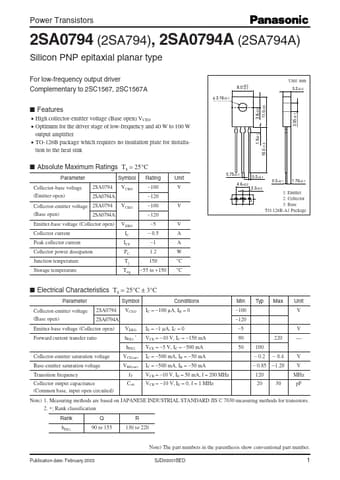

📥 Download Datasheet  Datasheet Preview Page 1

Description

Power Transistors 2SA0794 (2SA794), 2SA0794A (2SA794A) Silicon PNP epitaxial planar type For low-frequency output driver Complementary to 2SC1567, 2S.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2SA0794A, 2SA0794. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
2SA0794A, 2SA0794
Manufacturer
Panasonic
File Size
83.24 KB
Datasheet
2SA0794-Panasonic.pdf
Description
Silicon PNP Transistor
Note
This datasheet PDF includes multiple part numbers: 2SA0794A, 2SA0794.
Please refer to the document for exact specifications by model.

Features

* High collector-emitter voltage (Base open) VCEO
* Optimum for the driver stage of low-frequency and 40 W to 100 W output amplifier
* TO-126B package which requires no insulation plate for installa- tion to the heat sink
* Absolute Maximum Ratings Ta = 25°C Parameter
