2SC3931G - Silicon NPN Transistor

Product Overview

Panasonic

📥 Download Datasheet

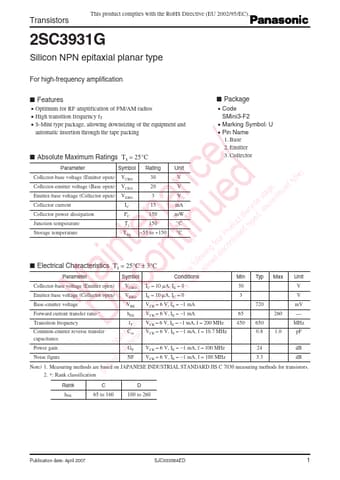

2SC3931G Silicon NPN Transistor by Panasonic - Datasheet Preview — Datasheet preview – 2SC3931G

Datasheet Details

Part number	2SC3931G
Manufacturer	Panasonic
File Size	356.83 KB
Description	Silicon NPN Transistor
Datasheet	2SC3931G Datasheet
Additional preview pages of the 2SC3931G datasheet.

Product details

Features

s.
Package.
Optimum for RF amplification of FM/AM radios.
Code.
High transition frequency fT SMini3-F2.
S-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing /.
Absolute Maximum Ratings Ta = 25°C.
Marking Symbol: U.
Pin Name 1. Base 2. Emitter 3. Collector Parameter Symbol Rating Unit e pe) Collector-base voltage (Emitter open) VCBO 30 V c e. d ty Collector-emitter v.
