50SEK22M - Conductive Polymer Aluminum Solid Capacitors

Panasonic

📥 Download Datasheet

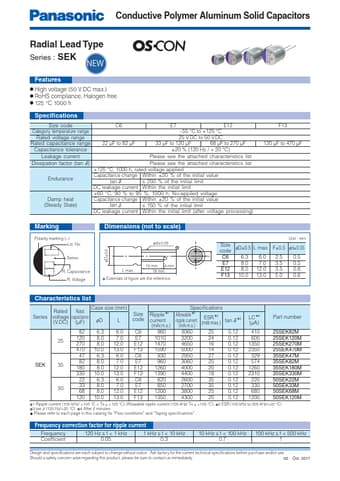

50SEK22M Datasheet Preview — Preview of 50SEK22M PDF

datasheet Preview Page 2

Datasheet Details

Part number: 50SEK22M
Manufacturer: Panasonic
File Size: 185.21 KB
Datasheet: 50SEK22M-Panasonic.pdf
Description: Conductive Polymer Aluminum Solid Capacitors

50SEK22M Product details

Features

High voltage (50 V. DC max. ).
RoHS compliance, Halogen free.
125 °C 1000 h Specifications Size code Category temperature range C6 E7 E12.
55 °C to +125 °C Rated voltage range 25 V. DC to 50 V. DC Rated capacitance range 22 μF to 82 μF 33 μF to 120 μF 68 μF to 270 μF Capacitance tolerance ±20 % (120 Hz / + 20 °C) Leakage current Please see the attached characteristics list Dissipation factor (tan d) Please see the attached characteristics list +125 °C, 1000 h,.
