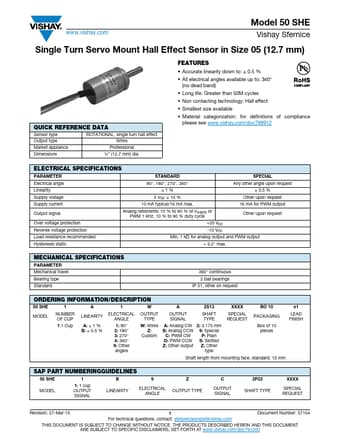

50SHE Single Turn Servo Mount Hall Effect Sensor

50 SHE 1 A 1 W A 2S13 XXXX BO 10 e1 MODEL NUMBER OF CUP LINEARITY ELECTRICAL ANGLE OUTPUT TYPE OUTPUT SIGNAL SHAFT TYPE SPECIAL REQUEST PACKAGING LEAD FINISH 1:1 Cup A: ± 1 % B: ± 0.5 % 1: 90° 2: 180° 3: 270° 4: 360° 9: Other angles W: Wires Z: Custom A: Analog CW B: Analog C.

50SHE Features

* Accurate linearity down to: ± 0.5 %

* All electrical angles available up to: 360° (no dead band)

* Long life: Greater than 50M cycles

* Non contacting technology: Hall effect

* Smallest size available

* Material categorization: for definitions of co
