Datasheet Summary

Features

  • 1. Conforms to European safety standard (VDE0700 and VDE0631). Insulating distance between coil and contacts: Clearance Min. 8mm .315 inch Creepage Min. 8mm .315 inch 2. Low operating power Nominal operating power at 200 mW (Single side stable, 2 coil latching) 3. Compact body saves space Size: 12.5(W) × 25(L) × 12.5(H) mm .492(W) × .984(L) × .492(H) inch 4. Conforms to the various safety standards UL, CSA and VDE approved RoHS compliant.

📥 Download Datasheet

Datasheet preview – ADE303

Datasheet Details

Part number ADE303
Manufacturer Panasonic
File Size 77.96 KB
Description DE RELAYS
Datasheet download datasheet ADE303 Datasheet
Additional preview pages of the ADE303 datasheet.

📁 Similar Datasheet

  • ADE3000 - LCD Display Engines with Integrated DVI/ ADC and YUV Ports (STMicroelectronics)
  • ADE3050 - LCD Display Engines with Integrated DVI/ ADC and YUV Ports (STMicroelectronics)
  • ADE3100 - LCD Display Engines with Integrated DVI/ ADC and YUV Ports (STMicroelectronics)
  • ADE3200 - LCD Display Engines with Integrated DVI/ ADC and YUV Ports (STMicroelectronics)
  • ADE3250 - LCD Display Engines with Integrated DVI/ ADC and YUV Ports (STMicroelectronics)
  • ADE3300 - LCD Display Engines with Integrated DVI/ ADC and YUV Ports (STMicroelectronics)
  • ADE3700 - Analog LCD Display Engine for XGA and SXGA Resolutions (STMicroelectronics)
  • ADE3800 - Analog LCD Display Engine (STMicroelectronics)
  • ADE-1 - Frequency Mixer (Mini-Circuits)
  • ADE-1+ - Frequency Mixer (Mini-Circuits)
Other Datasheets by Panasonic

Full PDF Text Transcription

Click to expand full text

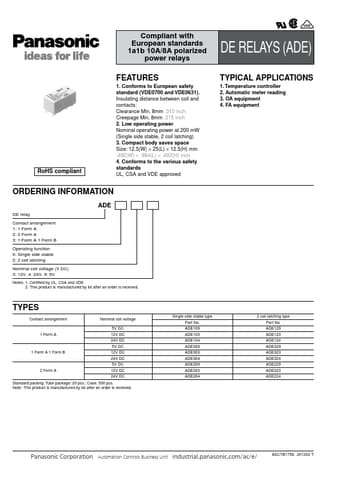

DE (ADE) Compliant with European standards 1a1b 10A/8A polarized power relays VDE DE RELAYS (ADE) TYPICAL APPLICATIONS 1. Temperature controller 2. Automatic meter reading 3. OA equipment 4. FA equipment FEATURES 1. Conforms to European safety standard (VDE0700 and VDE0631). Insulating distance between coil and contacts: Clearance Min. 8mm .315 inch Creepage Min. 8mm .315 inch 2. Low operating power Nominal operating power at 200 mW (Single side stable, 2 coil latching) 3. Compact body saves space Size: 12.5(W) × 25(L) × 12.5(H) mm .492(W) × .984(L) × .492(H) inch 4.
