ADE309

DE RELAYS

ADE309 Features

* 1. Conforms to European safety standard (VDE0700 and VDE0631). Insulating distance between coil and contacts: Clearance Min. 8mm .315 inch Creepage Min. 8mm .315 inch 2. Low operating power Nominal operating power at 200 mW (Single side stable, 2 coil latching) 3. Compact body saves space Size: 12.5

ADE309 Datasheet (77.96 KB)

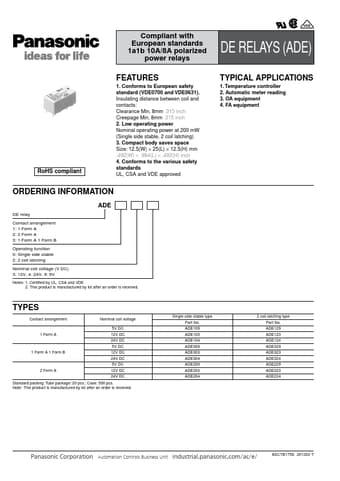

Preview of ADE309 PDF

Datasheet Details

Part number:

ADE309

Manufacturer:

Panasonic

File Size:

77.96 KB

Description:

De relays.
DE (ADE) Compliant with European standards 1a1b 10A/8A polarized power relays VDE DE RELAYS (ADE) TYPICAL APPLICATIONS 1. Temperature controller 2. .
