ALE12F24

1 Form A 16A power relay

ALE12F24 Features

* 1. Supports magnetron and heater loads Capable for switching magnetron and heater loads found in microwave ovens. 2. Excellent heat resistance Ambient temperature: up to 85°C 185°F Certified UL coil insulation class B and class F 3. Long insulation distance

* Creepage distance and clearances

ALE12F24 Datasheet (209.97 KB)

Preview of ALE12F24 PDF

Datasheet Details

Part number:

ALE12F24

Manufacturer:

Panasonic

File Size:

209.97 KB

Description:

1 form a 16a power relay.

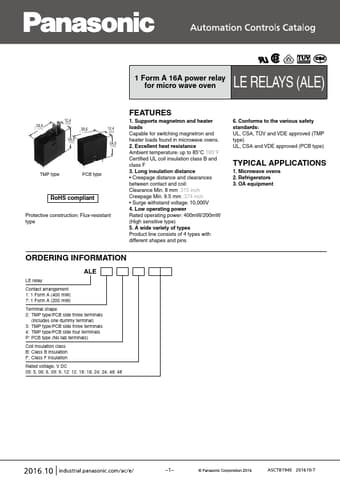

1 Form A 16A power relay LE RELAYS (ALE)for micro wave oven 28.6 1.126 12.4 .488 28.6 1.126 24.9 .980 12.4 .488 24.9 .980 TMP type PCB type RoHS.
