* 1. Supports magnetron and heater loads Capable for switching magnetron and heater loads found in microwave ovens. 2. Excellent heat resistance Ambient temperature: up to 85°C 185°F Certified UL coil insulation class B and class F 3. Long insulation distance
* Creepage distance and clearances

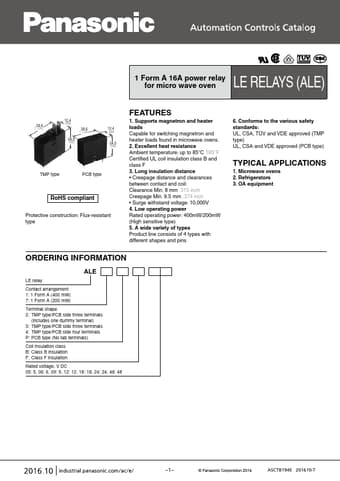

ALE14B48 Datasheet (209.97 KB)
ALE14B48
Panasonic
209.97 KB
1 form a 16a power relay.
1 Form A 16A power relay
LE RELAYS (ALE)for micro wave oven
28.6 1.126
12.4 .488
28.6 1.126
24.9 .980
12.4 .488
24.9 .980
TMP type
PCB type
RoHS.
