AQV225, AQV221 PhotoMOS RELAY / Radio frequent switching

Panasonic

Description

1 Form A type Radio frequent switching RF 1 Form A (AQV22❍) 8.8 .346 6.4 .252 3.9 .154 Height includes standoff 8.8 .346 1 2 3 6.4 .252 3.6 .14.

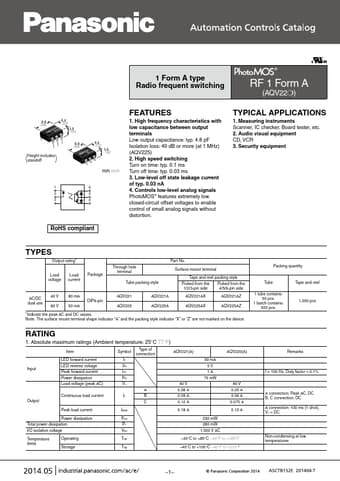

📥 Download Datasheet

AQV225 Datasheet Preview — This datasheet PDF includes multiple part numbers: AQV225, AQV221. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: AQV225, AQV221
Manufacturer: Panasonic
File Size: 103.51 KB
Datasheet: AQV221-Panasonic.pdf
Description: PhotoMOS RELAY / Radio frequent switching
Note: This datasheet PDF includes multiple part numbers: AQV225, AQV221.
Please refer to the document for exact specifications by model.

Features

* 1. High frequency characteristics with low capacitance between output terminals Low output capacitance: typ. 4.8 pF Isolation loss: 40 dB or more (at 1 MHz) (AQV225) 2. High speed switching Turn on time: typ. 0.1 ms Turn off time: typ. 0.03 ms 3. Low-level off state leakage current of typ. 0.03 nA 4

Applications

* 1. Measuring instruments Scanner, IC checker, Board tester, etc. 2. Audio visual equipment CD, VCR 3. Security equipment TYPES Output rating
* Load Load Package voltage current Through hole terminal Tube packing style Part No. Surface-mount terminal Tape and reel packing style Picked fr
