AQV227N

The AQV227N is PhotoMOS RELAY / Low On-Resistance designed by Panasonic.

Product Overview

Panasonic

📥 Download Datasheet

AQV227N PhotoMOS RELAY / Low On-Resistance by Panasonic - Datasheet Preview — Datasheet preview – AQV227N

Datasheet Details

Part number	AQV227N
Manufacturer	Panasonic
File Size	156.82 KB
Description	PhotoMOS RELAY / Low On-Resistance
Datasheet	AQV227N-Panasonic.pdf

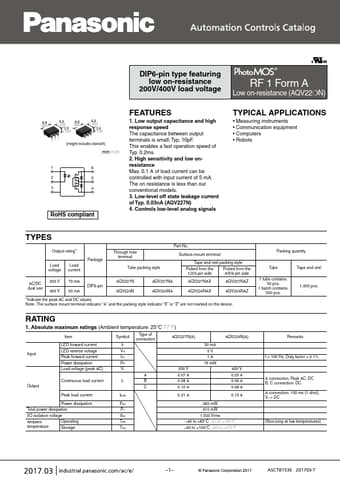

Additional preview pages of the AQV227N datasheet.

Product details

Features

1. Low output capacitance and high response speed The capacitance between output terminals is small; Typ. 10pF. This enables a fast operation speed of Typ. 0.2ms. 2. High sensitivity and low onresistance Max. 0.1 A of load current can be controlled with input current of 5 mA. The on resistance is less than our conventional models. 3. Low-level off state leakage current of Typ. 0.03nA (AQV227N) 4. Controls low-level analog signals.
