AQY230S

The AQY230S is PhotoMOS RELAY designed by Panasonic.

Product Overview

Panasonic

Part number	AQY230S, AQY232S
Manufacturer	Panasonic
File Size	141.68 KB
Description	PhotoMOS RELAY
Datasheet	AQY232S-Panasonic.pdf
Note	This datasheet PDF includes multiple part numbers: AQY230S, AQY232S. Please refer to the document for exact specifications by model.

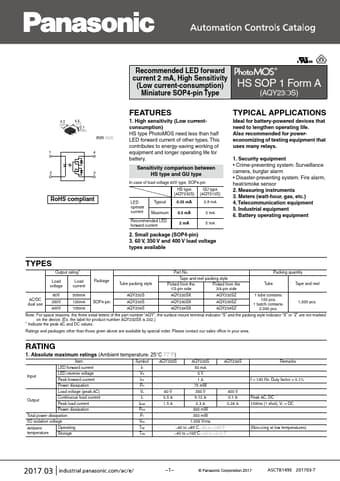

Additional preview pages of the AQY230S datasheet.

1. High sensitivity (Low currentconsumption) HS type PhotoMOS need less than half LED forward current of other types. This contributes to energy-saving working of equipment and longer operating life for battery. Sensitivity comparison between HS type and GU type In case of load voltage 60V type, SOP4-pin HS type GU type (AQY232S) (AQY212S) LED operate current Typical Maximum 0.35 mA 0.5 mA 0.9 mA 3 mA Recommended LED forward current 2 mA 5 mA 2. Small package (SOP4-pin) 3. 60 V, 350.
