AQY232S

The AQY232S is PhotoMOS RELAY designed by Panasonic.

Product Overview

Panasonic

Part number	AQY232S
Manufacturer	Panasonic
File Size	141.68 KB
Description	PhotoMOS RELAY
Datasheet	AQY232S-Panasonic.pdf

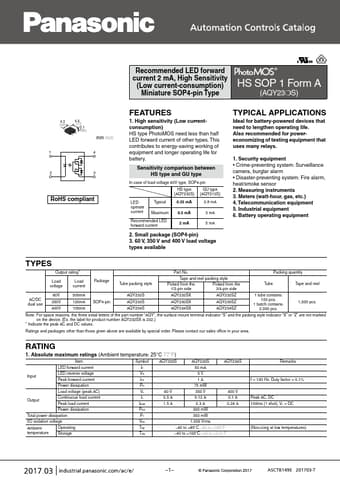

Additional preview pages of the AQY232S datasheet.

1. High sensitivity (Low currentconsumption) HS type PhotoMOS need less than half LED forward current of other types. This contributes to energy-saving working of equipment and longer operating life for battery. Sensitivity comparison between HS type and GU type In case of load voltage 60V type, SOP4-pin HS type GU type (AQY232S) (AQY212S) LED operate current Typical Maximum 0.35 mA 0.5 mA 0.9 mA 3 mA Recommended LED forward current 2 mA 5 mA 2. Small package (SOP4-pin) 3. 60 V, 350.
