C5406 - Silicon NPN triple diffusion mesa type Power Transistors

Panasonic

Datasheet Details

Part number	C5406
Manufacturer	Panasonic ↗
File Size	34.82 KB
Description	Silicon NPN triple diffusion mesa type Power Transistors
Datasheet	C5406-Panasonic.pdf

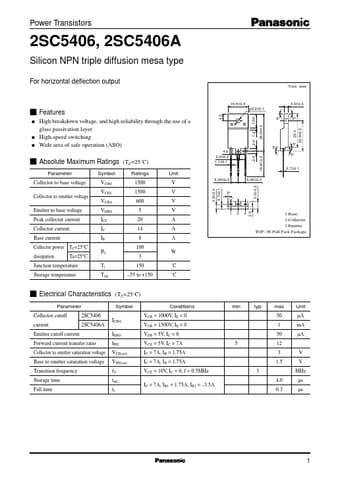

q High breakdown voltage, and high reliability through the use of a glass passivation layer q High-speed switching q Wide area of safe operation (ASO) s Absolute Maximum Ratings (TC=25˚C) Parameter Symbol Ratings Collector to base voltage Collector to emitter voltage Emitter to base voltage Peak collector current Collector current Base current Collector power TC=25°C dissipation Ta=25°C VCBO VCES VCEO VEBO ICP IC IB PC 1500 1500 600 5 20 14 8 100 3 Junction temperature Storage te.
