C5413 - Power Transistors

Panasonic

📥 Download Datasheet

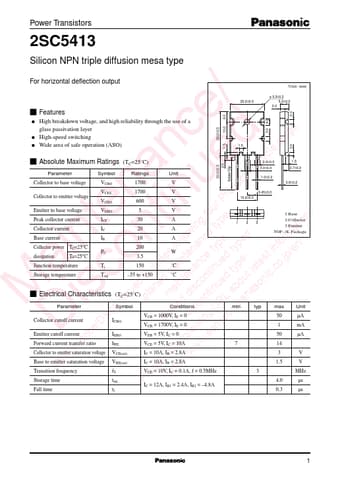

C5413 Datasheet Preview — Preview of C5413 PDF

Datasheet Details

Part number	C5413
Manufacturer	Panasonic ↗
File Size	52.78 KB
Description	Power Transistors
Datasheet	C5413-Panasonic.pdf

C5413 Product details

Features

q High breakdown voltage, and high reliability through the use of a glass passivation layer q High-speed switching q Wide area of safe operation (ASO) s Absolute Maximum Ratings (TC=25˚C) Parameter Symbol Ratings Collector to base voltage Collector to emitter voltage Emitter to base voltage Peak collector current Collector current Base current Collector power TC=25°C dissipation Ta=25°C VCBO VCES VCEO VEBO ICP IC IB PC 1700 1700 600 5 30 20 10 200 3.5 Junction temperature Storage.
