D2549 Datasheet - Panasonic

D2549, 2SD2549

Power Transistors 2SD2549 Silicon NPN triple diffusion planar type For power amplification s .

D2549-Panasonic.pdf

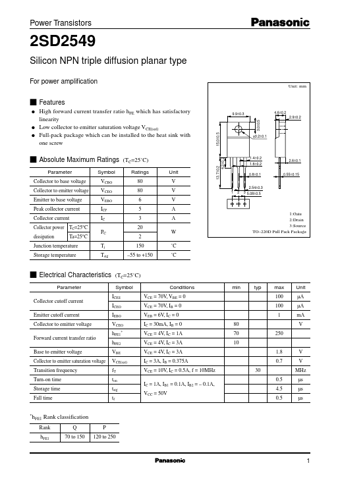

D2549 Datasheet Preview — Preview of D2549 PDF

Datasheet Details

Part number:

D2549

Manufacturer:

Panasonic

File Size:

38.35 KB

Description:

2SD2549

Features

* q High forward current transfer ratio hFE which has satisfactory linearity q Low collector to emitter saturation voltage VCE(sat) q Full-pack package which can be installed to the heat sink with one screw s Absolute Maximum Ratings (TC=25˚C) Parameter Symbol Ratings Collector to base voltage C
